Beam Rack Selected Rack Industrial Rack Roll Forming Machine Galvanized Steel

Due to the high load capacity of beam racks(heavy-duty shelf system roll forming machine) and the large weight of goods usually stored, loading and unloading of goods on beam racks is usually done by forklift trucks, which place the goods on a pallet and then move the pallet goods up and down the racks. In order to prevent forklift trucks from accidentally hitting the racking columns while travelling in the aisle, column guards, crash bars, crash barriers etc. can be installed alongside the columns. Beam racking(upright rack forming machine) is very malleable and can be built on the basis of beam racking such as drawer type mould racking, loft racking, narrow aisle racking, double depth racking, press-in racking, automated warehouse racking etc.

The height of each shelf(shelf system roll forming machine) can be adjusted at will. The holes in the shelf columns(upright rack forming machine) are arranged at a distance of 75mm or 50mm along a straight line and can be adjusted according to the height of the goods during installation to meet the storage of goods of different heights.

Flow chart:

Hydraulic decoiler--Leveler--Servo feeder--Punch press--Guiding--Roll forming machine--Hydraulic flying shear--Auto stacker

The spacing of the punched holes is flexible and adjustable on the machine, the distance position of each set of holes for this profile can be entered manually on the touch screen. Punching with the press is faster, twice as fast as punching with a hydraulic station and therefore more productive. At present we recommend the use of a pneumatic punching machine of the brand Yangli with a punching force of 80 tons, which allows continuous and continuous punching. The Yankee brand of punching machines has service centres all over the world and is therefore very popular with our customers.

Pictures of components:

Hydraulic decoiler

Leveling machine

Punch press 80T

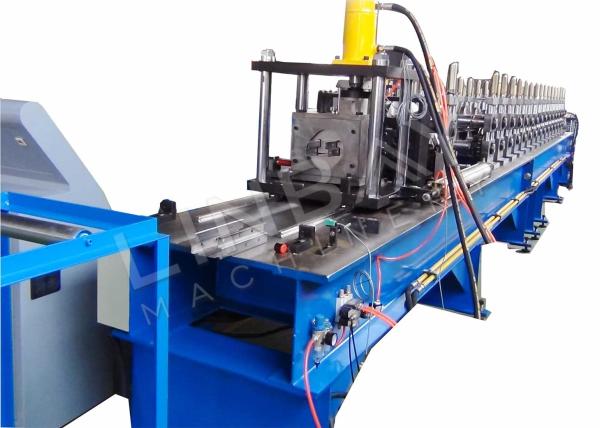

Upright rack roll forming machine

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
