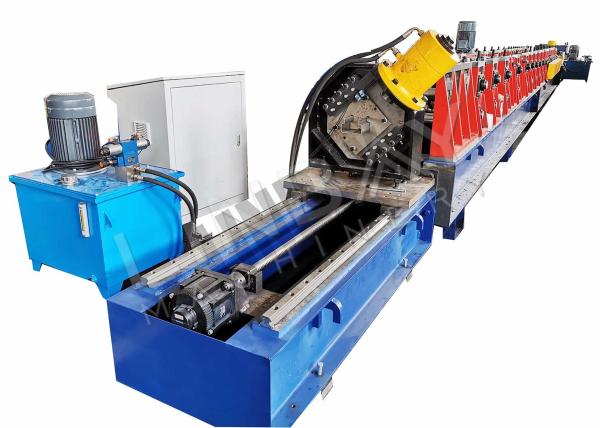

Heavy-Duty Warehouse Shlef System Roll Forming Machine Shelf Columns Beams

Weight type shelves(heavy-duty warehouse shlef system roll forming machine): weight type shelves are assembled by columns(upright rack roll forming machine), beams(step beam roll forming machine or box beam roll forming machine), cross braces(bracing roll forming machine), diagonal braces(diagonal bracing rollformer) and self-locking bolts, which can effectively prevent the shelves from becoming unstable when the bolts are loose; the beams are made of special cold-rolled P-type closed-ended beams; the structure has the characteristics of simple and reliable, light weight, strong load-bearing capacity and low cost; the column cards are connected to the columns with specially designed safety pins, which can ensure that the beams will not fall off under external impact; the layer plates The internationally made strip laminate is used, which has the characteristics of strong load-bearing capacity, wear resistance, simple replacement and low maintenance cost. Uses: Low cost, safe and reliable, easy to assemble and disassemble, suitable for manual access, with a standard effective load of 800kg or more per layer. Suitable for manual access to box-type goods, or with parts boxes, crates supporting the loading of scattered heavy goods.

Features: 1,Weight type shelves(warehouse shelf roll forming machine) are used in various industries, low cost, safe and reliable, easy to assemble and disassemble, can be used alone or freely arranged in the form of main and sub shelves. 2,The column(heavy-duty upright rack roll forming machine) pieces of weight type shelves are made of columns, cross braces and diagonal braces connected by bolts; the column pieces and P-type closed beams are plugged together to form a shelf frame, fixed by safety pins, with a simple and reliable structure; the steel layer plates are placed on top of the cross beams to form a shelf. The steel ply is placed on top of the crossbeam to form the whole. Each layer can be freely adjusted up and down by 75mm steps. 3,Weight type shelves can be used with the size of the crossbeam, thickness of the layer plate and the number of reinforcement bars to determine the layer load requirements, and the maximum layer load can be up to 2500kg per layer if the relative length and material selection requirements are met. 4,Usually, the height of the column does not exceed 12m, and attic shelves can be built on the shelf base.

Flow chart:

Hydraulic decoiler--Leveler--Servo feederwith hydraulic punch--Guiding--Roll forming machine--Hydraulic flying shear--Out table

For heavy duty shelving of 2-3mm thickness, we recommend our customers to use a punching machine or, if price is a consideration, a hydraulic station for punching. We export our heavy duty shelving production equipment to Chile, where we have better sales in Chile and Colombia, and are committed to developing the Mexican market and selling our equipment to more South American countries to provide more customers with better solutions, more economical prices and better quality to help the people of the world achieve common prosperity.

Pictures of components:

Hydraulic decoiler

Hydraulic punch

Upright rack roll forming machine

Fotoelectric sensor to cut length

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
