Easy Assembling Shelf Column Steel Slotted Angle Rack Roll Forming Machine

Mainly composed of columns(angle rack roll forming machine) and steel laminates(shelf panel bending machine) Suitable for manual access to lighter goods, can be used with plastic crates to store a variety of small products, widely used in the electronics industry and small parts warehouse, can be changed by spraying powder or laying a special rubber plate to achieve anti-static function, with low cost, safe and reliable, simple assembly and disassembly, can be used alone, but also free to splice into various arrangements. The addition of a universal wheel mechanism at the foot even allows for a transfer function. The top and bottom layers of the shelves are connected to the columns with double angle codes and screws to make the shelves stable. The steel laminate is made of Japanese standard spcc cold plate bent on all sides according to the required size, with concave reinforcement welded underneath, and the welding is spot welded.

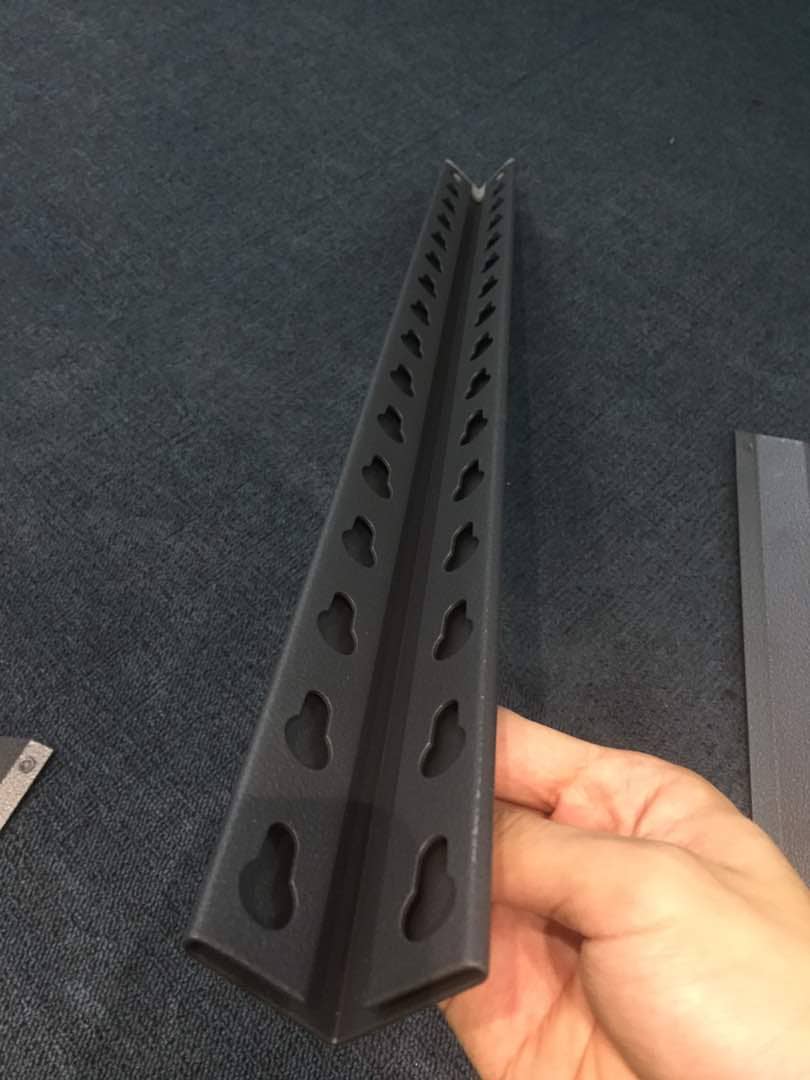

1,Shelf column(angle post roll forming machine): made by bilateral punching of equilateral angles, the holes are arranged at a distance of 50mm along a straight line, the column holes are used for hanging and connecting layer plates

2,Steel shelves(shelf panel roll forming machine): cold rolled steel sheets are bent on all sides according to the required size.

3,The columns and steel shelves are connected and fixed by fasteners and triangle type fixing pieces.

4,After each part of the shelf has been processed and shaped, all the finished products are assembled after grinding, pickling, phosphating, automatic powder electrostatic spraying and drying. The surface of the finished shelves is clean and beautiful; the shelves can be adjusted up and down at will and are easy to disassemble.

Angle post roll forming machine flow chart:

Decoiler-Servo Feeder-Punching press-Storage rack-Roll forming machine-Hydraulic cut-Out table

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
