0.8-1.2mm Metal Deck Roll Forming Machine

    Buy cheap 0.8-1.2mm Metal Deck Roll Forming Machine from wholesalers

    Buy cheap 0.8-1.2mm Metal Deck Roll Forming Machine from wholesalers
    • Buy cheap 0.8-1.2mm Metal Deck Roll Forming Machine from wholesalers

    0.8-1.2mm Metal Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : LINBAY
    Model Number : LB-MD
    Certification : ISO:9001
    Price : USD65,000-75,000
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per year
    Delivery Time : 100 working days
    • Product Details
    • Company Profile

    0.8-1.2mm Metal Deck Roll Forming Machine

    TR51+ TR60+ TR80+ TATA Comflor 51 Steel Decking Floor Deck Roll Forming Machine


    In buildings with a large roof covering span, a suspension or cable membrane structural system where the members are mainly in tension can be chosen. Those who do not understand the structure and performance of the floor joist machine and the operating procedures are not allowed to start the machine. It is strictly forbidden to work beyond the minimum closing height, that is, the minimum distance from the bottom surface of the upper sliding box to each surface of the work is 290mm. The height of the upper and lower moulds after closing the moulds plus, the thick bottom of the upper and lower mat board plus the thickness of the tile billet, is not allowed to exceed 290mm, and the moulds should be designed according to this requirement when manufacturing, so as to avoid machine tool accidents. Pay attention to the height of lubricating oil in the sliding box and both sides of the machine body frequently. The equipment should be wiped frequently to keep it clean and no mud and water should be allowed to accumulate. (metal deck roll forming machine/metal deck bending machine) (floor decking roll forming machine/ floor decking bending machine)


    Floor plate machine high-rise steel structure design, often using a combination of steel and concrete structure, in high seismic intensity or very irregular high-rise, should not simply for the sake of economy to choose unfavorable seismic core plus the form of the outer frame. It is advisable to choose a structural system in which the perimeter is a giant src column and the core is a supporting frame. More than half of such high-rise buildings in China are of the former type. Unfavourable for seismic resistance. In light steel industrial plants, when there are large suspended loads or moving loads, it is possible to consider abandoning portal rigid frames and using mesh frames. In areas with high basic snow pressure, the roof curve should be conducive to snow sliding, with similar considerations for areas with high rainfall. Where construction permits, bracing in the frame will be more economical than a simple node-rigged frame. (Steel deck roll forming machine/Steel deck bending machine) (roof deck roll forming machine/ roof deck bending machine)


    Flow chart of TR51+ TR60+ TR80+ TATA Comflor 51 Steel Decking Floor Deck Roll Forming Machine:

    Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table


    Greatly improve the work efficiency, high quality and low price, economical. The machine's design is new and reasonable, in line with the market demand, with many models, series and sets of colour board machines. (metal deck roll forming machine/metal deck bending machine)The colour board machine is automatically controlled and operated by text or touch screen, the length counting is designed with anti-slip, and the length counting is done with Japanese Omron encoder, the length counting is accurate. This equipment is CNC automatic floor-bearing board cutting machine, the board type is galvanized high-strength steel floor panels, large span floor laying cement. (floor decking roll forming machine/ floor decking bending machine) The press roller is forged and processed with 45# superior carbon steel, with uniform tissue density and wear resistance, and processed by CNC machining centre to ensure the dimensional accuracy, symmetry and good finish of the press roller and reduce jumping, and the small draw roll is assembled with sub-axis staggering to reduce the single-axis concentrated force which leads to poor forming effect. PLC control, touch screen operation, simple and easy to understand. (Steel deck roll forming machine/Steel deck bending machine) (roof deck roll forming machine/ roof deck bending machine)


    TR51+ TR60+ TR80+ TATA Comflor 51 Steel Decking Floor Deck Roll Forming Machine
    Plus configurations
    ItemSpecification
    Machinable Material :Type :A) Galvanized Coil
    Thickness :0.8-1.5mm
    Yield strength :≤550 Mpa
    Working speed :0-20m/min
    Machine colour :Industrial blue
    Delivery :120 working days
    Warranty :24 months
    Uncoiling :Type :Hydraulic uncoiling
    Capacity :10 tons
    Pre- forming shear :Type :Electric motor control
    Waste :0mm
    Roll forming machine :Forming steps :28
    Motor power :2x18.5kw
    Transmission system :gearbox
    Support structure :cast iron with stiffner
    Material of rollers :#45 steel tempering quenching chrom plating
    Diameter of shafts :φ95mm
    Hydraulic cutting system :Type :Tracking shear
    Cutting length :Any length
    Length tolerance :≤1mm
    Auto stacker :Type :Automatic
    Length :depends on the maximum length of deck
    Hydraulic station :Motor power :7.5kw
    PLC Control :Language :English-Chinese
    Inversor :Yaskawa*2
    PLC :Siemens
    Electricity :380V 50Hz 3Ph

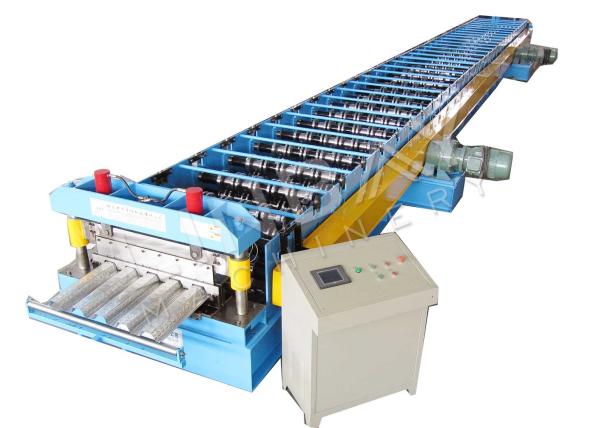

    Pictures of TR51+ TR60+ TR80+ TATA Comflor 51 Steel Decking Floor Deck Roll Forming Machine:
