Mexican RN-100 Steel Deck Roll Forming Machine 0.8mm Thickness

Floor bearing plate(metal deck roll forming machine/metal deck bending machine) is also called a variety of ways such as combination floor plate, floor bearing plate, steel bearing plate, pressure type steel plate, floor plate, steel floor bearing plate, combination floor plate, galvanized steel bearing plate, galvanized floor plate, galvanized floor plate, combination floor plate, combination floor plate, floor steel bearing plate, building pressure type steel plate, combination floor plate, etc., and is divided into: open floor bearing plate(floor decking roll forming machine/ floor decking bending machine), fully closed type floor bearing plate, dovetail type floor bearing plate, etc. Floor forming machine steel structure column network spacing generally 5 ~ 9.0m × 8 ~ 15m, secondary beam spacing of 3m, and floor plate off the material length of 4.97 ~ 8.97m, transport and installation are more difficult, especially with the vertical lifting floor plate by the arc area, from top to bottom in the secondary beam narrow wear set more difficult, and disrupt the secondary beam welding normal process. (roof deck roll forming machine/ roof deck bending machine)Control down the length of the material for 3 ~ 6m, can avoid vertical transportation in the secondary beam between the problem can not be lifted. Special soft slings are used for the lifting of floor joists. The soft slings should be checked for tears and cuts each time they are lifted.

Floor joists should be protected from probes when resting on steel beams. The operator should wear a safety belt when laying the material and ensure that it is fixed to the perimeter safety rope while laying. (Steel deck roll forming machine/Steel deck bending machine)

Flow chart of Mexican RN-100 Steel Deck Roll Forming Machine 0.8mm Thickness:

Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table

TRD91.5 is a special type of floor slab in Mexico, which is the standard version of Ternium, also known as LOSACERO 15. this version is only used in Mexico and this line is also exported to Mexico.

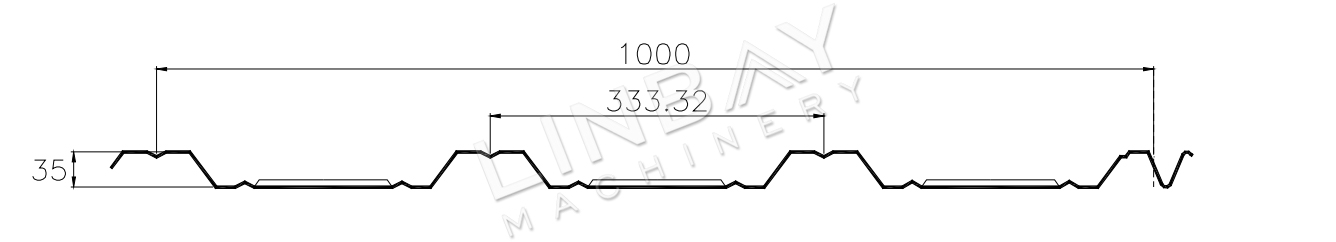

Mexican Losacero 15 TRD91.5 Steel Deck Roll Forming Machine Metal Panel Parameters:

Pictures of Mexican RN-100 Steel Deck Roll Forming Machine 0.8mm Thickness:

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
