Full Automatic Hydraulic Punch Stainless steel Scaffold Board Roll Forming Production Line

Uses and advantages of steel scaffolding boards.

1. When using steel springboards, steel pipes for scaffolding can be increased appropriately to improve construction efficiency. The price is lower than timber and after years of scrapping, it is still acceptable for 35%-40% of the investment. (scaffolding plank roll forming machine/ scaffolding plank bending machine)

2. Steel scaffolding board has the characteristics of fireproof, sandproof, light weight, corrosion resistance, alkali resistance, high compressive strength, nominal concave and convex holes and both sides are I-shaped design. Its consequences are particularly obvious than similar products.

3. Strong load-bearing capacity; The design of flat support, square support and trapezoidal support in turn improves the support force of the springboard. The unique side box design perfectly covers the C-beam part of the springboard and enhances the deformation resistance at the same time. 500mm intermediate support spacing effectively enhances the deformation resistance of the springboard.

4. neatly spaced, standardised, elegantly shaped and durable (the deformed structure can be used continuously for 6-8 years). the unique sand hole process at the bottom prevents sand build-up and is particularly suitable for use in shipyard sand blasting workshops. The steel skip is a type of construction equipment used in the construction industry. Often it can be referred to as steel scaffold plates, construction steel scaffold plates, steel scaffold plates, galvanised steel scaffold plates, galvanised steel scaffold plates and is widely accepted and used in the large shipbuilding industry, oil platforms, power and construction industries. (steel scaffold board roll forming machine/steel scaffold board bending machine)

Flow Chart Of Full Automatic Hydraulic Punch Galvanized Steel Scaffold Board Roll Forming Production Line

5T hydraulic deoiler with leveler-Sevo motor-Hydraulic punch-Roll forming machine-Hydraulic cut-Outer table

Main Technical Parameters

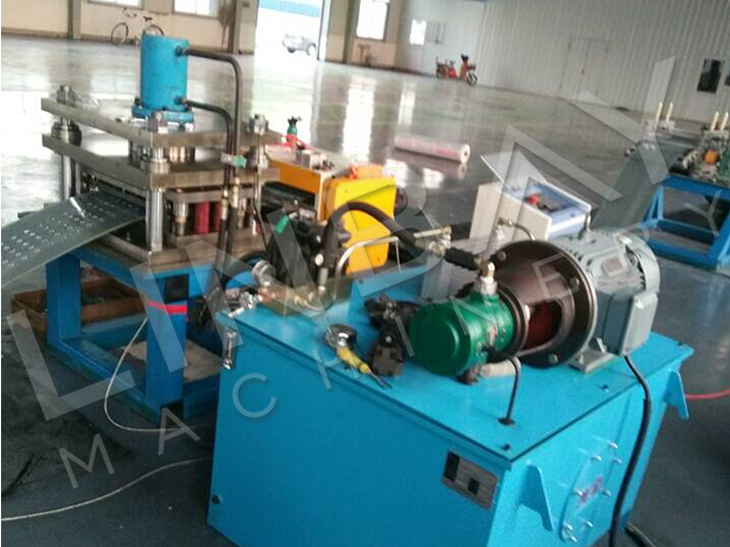

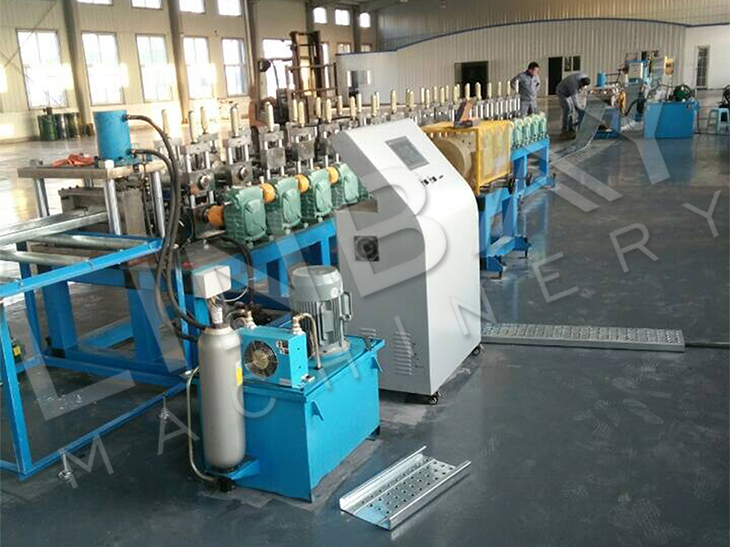

Pictures of Full Automatic Hydraulic Punch Galvanized Steel Scaffold Board Roll Forming Production Line

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
