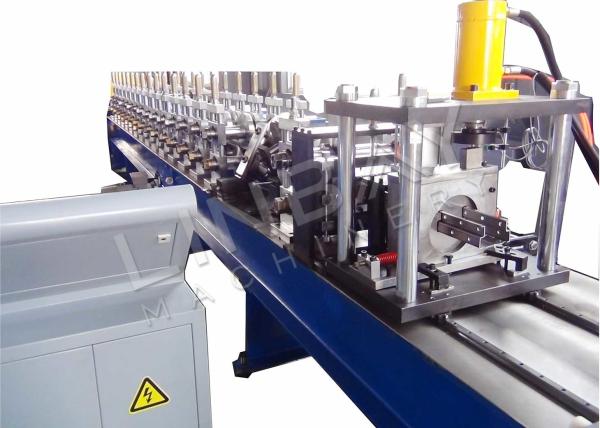

Carbon Steel Fully Automatic Roll Forming Machine 2mm

    Buy cheap Carbon Steel Fully Automatic Roll Forming Machine 2mm from wholesalers

    Buy cheap Carbon Steel Fully Automatic Roll Forming Machine 2mm from wholesalers
    • Buy cheap Carbon Steel Fully Automatic Roll Forming Machine 2mm from wholesalers
    • Buy cheap Carbon Steel Fully Automatic Roll Forming Machine 2mm from wholesalers

    Carbon Steel Fully Automatic Roll Forming Machine 2mm

    Ask Lasest Price
    Brand Name : LINBAY
    Model Number : LB-WSR
    Certification : ISO:9001
    Price : USD150,000
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per year
    Delivery Time : 100 working days
    • Product Details
    • Company Profile

    Carbon Steel Fully Automatic Roll Forming Machine 2mm

    Automatic Size Interchangeable Racking Column Roll Forming Machine Multiple Rack Sizes


    Beam shelving(Warehouse shelf roll forming machine) is widely used in the warehousing industry because of its high load capacity, high picking efficiency, ease of mechanical operation, low cost and strong versatility to accommodate different types of goods storage.

    Beam shelving(Warehouse shelf rollformer) is heavy duty and has a large load capacity. The unit load of heavy duty beam shelving can be 1000-3000 kg. The layer load of beam shelving can be customised according to customer requirements, by adjusting the size of the columns(Upright rack roll forming machine) and beams(box beam roll forming machine or step beam roll former) and by using different materials.



    The shelves(shelf system roll forming machine) are assembled from columns(upright rack roll forming machine), beams(step beam roll forming machine or box beam roll forming machine), cross braces(bracing roll forming machine), diagonal braces(diagonal bracing rollformer), bolts and other components. The columns and crossbeams are joined together to form the shelves. Safety pins are used between the crossbeams and the columns to ensure that the crossbeams do not fall off under external impact. Due to this combination of structural features, the shelves are very convenient in terms of transport, handling, installation and dismantling.


    Flow chart:

    Hydraulic decoiler--leveler--Servo feeder--Punch press--Recoiler

    Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic flying cut--Out table


    Automatic Size Interchangeable Racking Column Roll Forming Machine Multiple Rack Sizes
    ItemSpecification
    Machinable materialTypeGalvanized steel
    Thickness2mm
    Perforation line:
    Working speed0-10m/min
    Component 1:DecoilerHydraulic type 5.5kw+3kw
    Component 2:LevelerElectric 5.5kw
    Component 3:Punch press machineJH21-80
    Component 4:RecoilerHydrauic type 7.5kw+5.5kw
    Roll forming line:
    Component 1:DecoilerHydraulic type 5.5kw+3kw
    Component 2:Roll forming machine

    Cast iron stands structure

    Gearbox drive

    15kw

    Component 3:Flying shear

    Hydraulic motor 56.5kw

    Servo motor 3kw

    Component 6:Out table*22*2m
    Component 4:

    Control panel*2

    Voltage

    SIEMENS PLC

    380V 50Hz 3ph or according to your requirements

    Component 5:Hydraulic station*33kw+11kw*5.5kw

    In this line, the customer has split the entire production step into a punching line and a forming line in order to achieve fast speed, so that the forming speed is not affected by the punching and can reach 15 m/min. One line is dedicated to punching and after punching the material is recycled into rolls and then the whole roll is put into the uncoiler of the forming line and then rolled.
    In addition, the forming machine is automatically adjustable in size by means of 3 small motors, and the width and height can be automatically positioned to that size by setting it on the touch screen, making it very easy to operate.

    Pictures of components:

    Upright rack roll forming machine

    Cross bar roll forming machine

    Box beam roll forming machine
