Lightweight Shelving Upright Rack Steel Column Racking Roll Forming Machine Torri Stands Structure

Lightweight shelving (produced by lightweight shelving roll forming machine):

Features: Lightweight shelving is the ideal product of choice for users in the shelving range. Its structure is made up of racks(produced by upright rack roll forming machines), pallet(produced by shelf pallet roll forming machines), card pins combined and plugged together. The upper and lower layers are fixed and the rest of the middle layer can be adjusted at will. It is mechanically punched so that the shelves and columns are locked together by means of a pin structure, which makes it easy to install and dismantle, without the need for strong force.

Scope of application: It is suitable for small parts, accessories and other light workplaces, with a load capacity of 100-150kg per layer, mainly for manual handling, storage and picking operations.

Flow chart:

Hydraulic decoiler with leveler--Servo feeder--Hydraulic punch--Guiding--Roll forming machine--Hydraulic punch--Out table

We use Torri stands or wall panel construction with chain drives when producing thicknesses of less than 2mm. Depending on the speed required by the customer, we use tracking cuts or stop cuts. We specialise in the manufacture of customised roll forming machines to provide you with reliable and reasonable solutions according to your speed requirements, processing thickness and budget.

Picture of components:

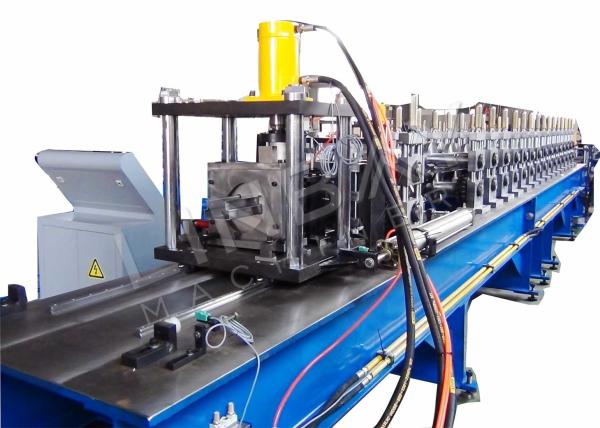

Hydraulic punch station

Upright rack roll forming machine

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
