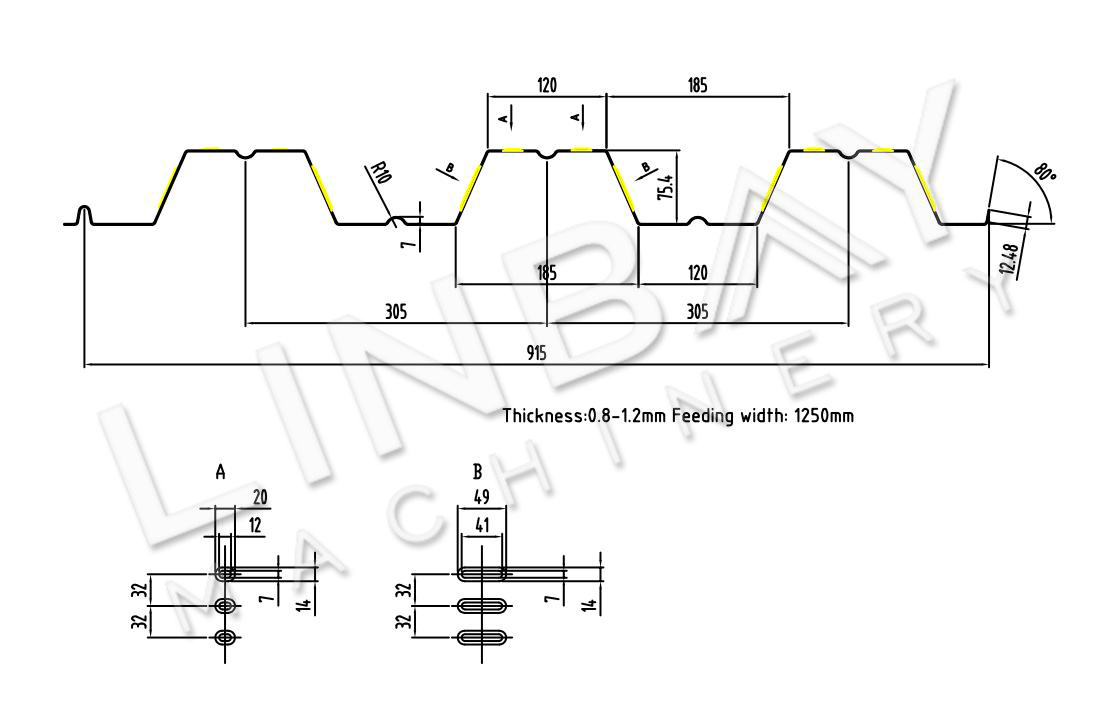

Steel Deck 75mm Roll Forming Machine Galvanized Steel 3'' Floor Deck

Floor bearing plate shape simple, waviness, high strength, installation laying welded steel mesh and concrete view field pouring combination, good adhesion, in high-rise buildings can save steel formwork, but also can reduce the floor bearing.　 (metal deck roll forming machine/metal deck bending machine)

1,In the use phase, it improves the overall stability of the steel beam and the local stability of the upper flange;　 (floor decking roll forming machine/ floor decking bending machine)

2, When the floor steel plate is installed, it can be used as a construction platform. At the same time, because it is not necessary to use temporary support, it does not affect the work of the next floor construction plane;　

3, the rib of the floor steel plate can be placed in water, electricity, pipelines, so that the structural layer and pipelines into one, indirectly increase the height of the floor or reduce the height of the building, to bring flexibility in architectural design;　 (Steel deck roll forming machine/Steel deck bending machine)

4, according to the different cross-sectional shape of the floor steel plate, more than 30% of the concrete consumption of the floor can be reduced, the reduction of the self-weight of the floor can correspondingly reduce the size of the beam, column and foundation, improve the overall performance of the structure;. (roof deck roll forming machine/ roof deck bending machine)

Flow chart of Steel Deck 75mm Roll Forming Machine Galvanized Steel 3'' Floor Deck:

Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table

LINBAY MACHIENRY exported this METAL DECK machine to Iraq. This machine is producing common floor joist size 75mm high. The floor bearing plate production line is recommended to use hydraulic uncoiler, the general thickness of the floor bearing plate is 0.8mm or 1mm, the width of the steel coil is 1250mm or 1220mm, so the steel coil is big and heavy, so the hydraulic uncoiler is more suitable to speed up the process of replacing the steel coil and improve the efficiency of the whole production process.

Pictures of Steel Deck 75mm Roll Forming Machine Galvanized Steel 3'' Floor Deck:

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
