Mexican Galvateja Metal Roofing Tile Sheets Color Coated Roll Forming Machine

Colour steel glazed tiles(Metal steel glazed tile roll forming machine/Metal steel glazed tile bending machine) are made by pressing horizontal coloured steel sheets through colour steel forming equipment. There are many different types of colour steel sheets, but in broad terms, they can be divided into roofing sheets and wall panels. Colour steel glazed tiles are generally used as roofing sheets and are laid on roofs built with steel structures, which ensures the beauty of the building and also extends the life of the building. (metal roof tile roll forming machine/metal roof tile bending machine)

The biggest advantage of a house built with steel is that it saves resources. The load-bearing walls are all made of profiled steel (e.g. C-beams, Z-beams, etc.) and the walls are covered with composite panels. The roofs are made from colour steel glazed tiles. (Metal roofing Tile roll forming machine/Metal roofing Tile bending Machine)

The production equipment for the colour steel glazed tiles is all made of cast iron and steel. The base is made of H-beams, on which two support frames are erected, divided into many rows. A certain distance is left in the middle of each row to put the shafts for pressing the shapes. The designer designs the shafts accordingly to the shape of the plates. Each shaft is driven by a chain from shaft to shaft and, beyond the first one, by a speed reducer. And the reducer is controlled fully automatically with a PLC system. It is possible to control the length of the colour steel glazed tile sheets as required to get the ideal sheet. (Metal roofing roll forming machine/metal roofing bending machine)

Flow chart of Mexican Galvateja Metal Roofing Tile Sheets Color Coated Roll Forming Machine:

Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic cut--Out table

Galvateja is a kind of roof tile very typical of Mexico, Galvateja can have 3D cut, that is, the cut is following the wave, cut with a mold, this kind is more expensive. There is also the ordinary up and down shear. At present, these two roof tile style equipment are very popular.

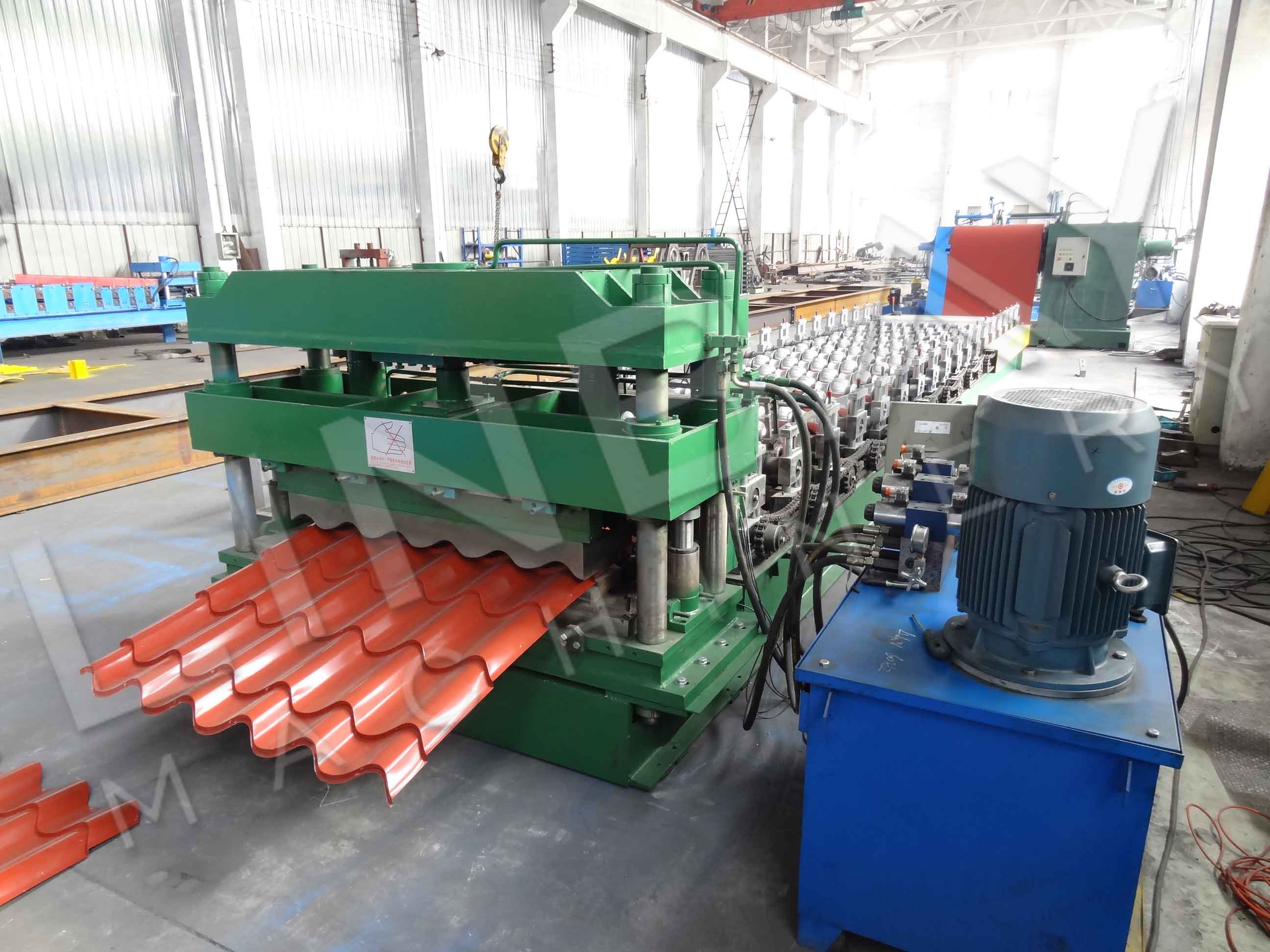

Pictures of Metal Roofing Tile Sheets Color Coated Roll Forming Machine Galvanized Steel:

LINBAY MACHINERY we are located in Wuxi city, Huishan District which is known for the quality of its steel and fine craftsmanship. Our factory has 2 machining center work shop, two assembling workshop and 2 profile producing work shop. In total, our factory covers an area of 10,000 ㎡. Our main production is roll forming machine, specially cable tray roll forming machine, strut channel/Solar photovoltaic stents roll forming machine, din rail roll forming machine, highway guardrail W beam/thrie beam roll forming machine, wire mesh fence post roll forming machine, scaffolding plank roll forming machine, upright rack roll forming machine, box beam roll forming machine, step beam roll forming machine, steel frame roll forming machine and roof panel roll forming machine. We are founded in 2012, we almost have 10 years production experience, however our boss and our design engineers have been working over 20 years in this machine and have been over to more than 80 countries to install our equipment. We are being the most professional manufacturer of roll forming solutions.

As always we are focus con the machine for customized profiles and special profiles, and will do all we can to make this business relationship a success. With 10 years’ experience, the smallest profile that we have made is smaller than a pen, the precision that we have met is just +/-0.1mm, the run-out range of the rollers is only +/- 0.03mm, also we succeeded in making a 90°roof panel profile. We make unremitting efforts to satisfy our customers with the profile that other supplier aren’t able to do.

Our secret to producing this such high-precision roll forming machine is that we use Germany application Copra to make our design and 3D simulation function to ensure the profile. Besides, our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

Our sales department is also excellent. We are proficient in machine knowledge. Our sales engineers can give the best offer for our customers according the requirement and budget. In addition to speaking English, we also have salesman who speaks Spanish and other speaks Russian. Our customers are mainly in USA, Middle East, Latin America, Russia, and some Asian countries. We know well the requirements of customer who has high-standard with his machine, and we offer it and make it perfect. About the quality, we are confident to give 2 years for whole production line 5 years for rollers and shafts as warranty period. If there will be any quality problems caused by non-human factors, we will handle it totally for free for you, so that you will have no worries after sales.

Our company has a wealth of experience and qualifications. We have CE certificate to export to European countries, we have ISO certificate to cooperate with Saudi customers for SABER certificate to facilitate customs clearance, our equipment meets HQTS standards and can provide COI certificate for export to Iraq, our equipment meets Canadian standards and can provide CSA certificate.

LINBAY is trusty and responsible and we are your first choice of roll forming machine.
